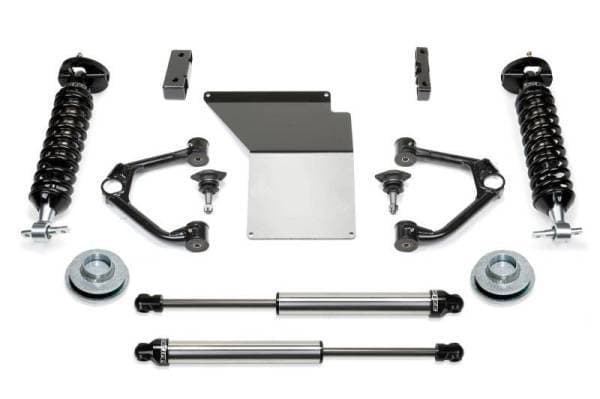

Fabtech 07-14 GM C/K1500 SUV 2WD/4WD 4in Budget UCA System w/DL 2.5 Coilovers & Rear DL Shocks - K1060DL

The 4" Budget System for GM C/K1500 SUV's provides a mild lift height with a supple ride for use with 33" tall tires for the value minded enthusiast. Fabtech's replacement DOM upper tubular control arms feature heavy duty extended range ball joints that provide additional strength to the front suspension. The new ball joints provide unrestricted movement throughout the suspension travel range for smooth operation. On 4WD models the front differential housing is relocated to keep CV angles proper with the new ride height while a 1/4" thick steel skid plate protects the front diff. The rear lift comes from a 1 1/2" Coil Spacer system. For increased damping this system comes with high end Dirt Logic 2.5 Coilovers for the front and Dirt Logic 2.25 shocks on the rear.TIRE SIZE - 275/65R18 WHEEL - 18X8 W/4 1/2" BS W/MINOR TRIMMING TIRE SIZE - 285/55R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING TIRE SIZE - 295/70R17 WHEEL - 17X8 W/4 1/2" BS W/MINOR TRIMMING 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS. 14. CAN NOT USE OEM WHEEL AND TIRE. 132. WILL NOT FIT 2WD SUBURBAN.
